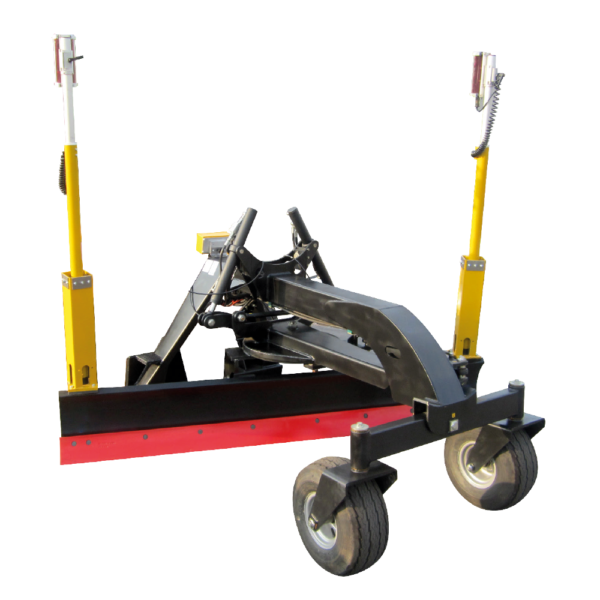

Grader Blade

The Grader Blade M3 can be fitted to small skid steer loaders with power ranging from 50 to 120 HP. It is ideal for the preparation and the leveling of lands, roads and yards. It is equipped with the tilt system 32°, oscillation 40° and translation 450 mm of the blade with hydraulic functioning through a control panel, manual flow regulator on the distributor on / off, st52 steel structure, coupling to the machine, hydraulic hoses and electric control kit.

Description

Model GR230 GR250 GR270
Width (A) 2300 2500 2700
Depth (B) 2360 2360 2360
Height (C) 1480 1480 1480
Blade width
[mm]
2300 2500 2700
Weight
[kg]
670 690 710
Hydraulic blade
inclination r/l
±38° ±38° ±38°
Hydraulic blade
oscillation r/l
±32° ±32° ±32°
Hydraulic blade translation
[mm]
±450 ±450 ±450

M3 MetalMeccanicaModerna s.r.l. is a company with high-level experience in both building industry and earthmoving machinery. All M3 products can be attached to any type of construction machine.
