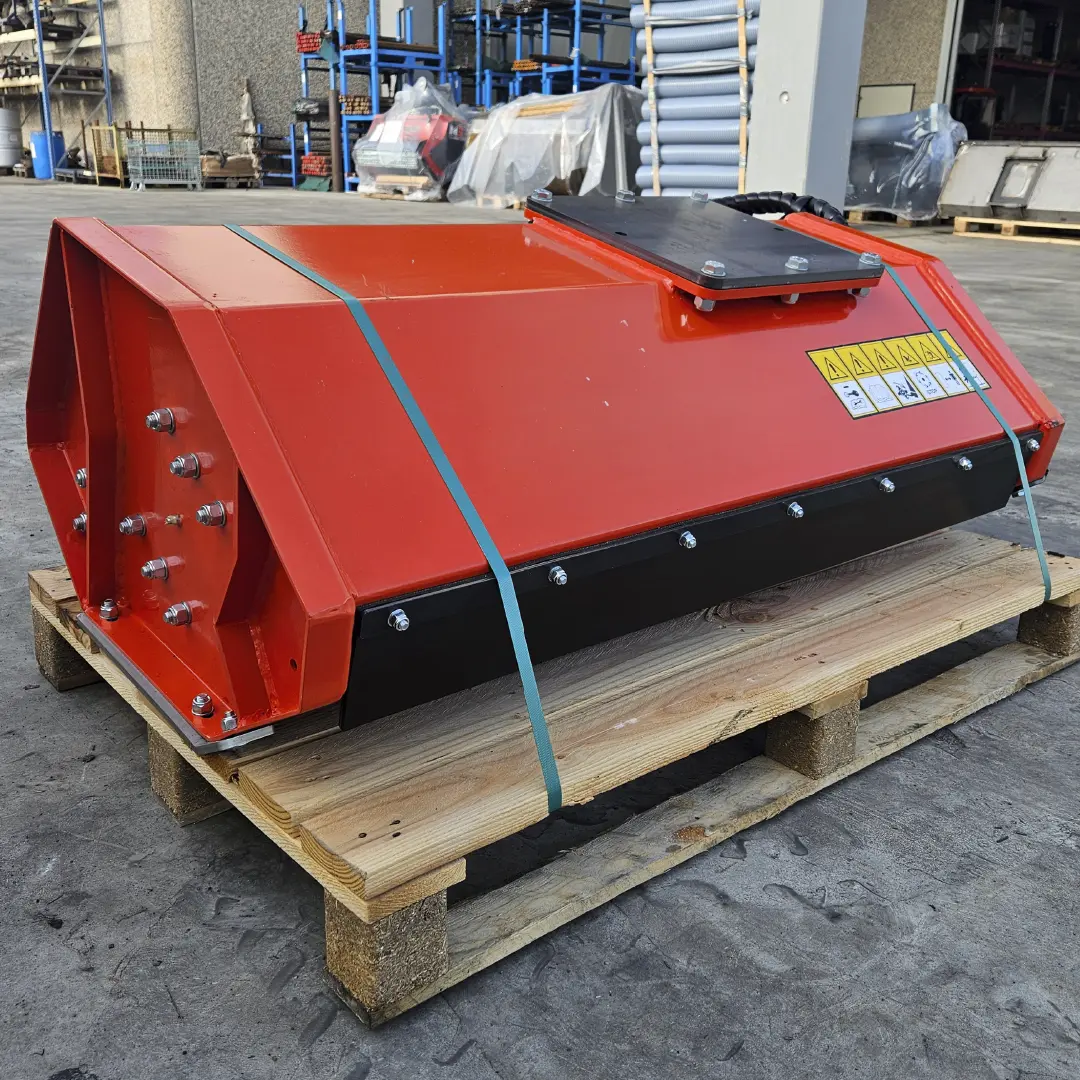

Hydraulic Mulcher STD

The Hydraulic Mulcher STD M3 is designed with a strong and reliable structure and can easily fit any type of excavators. It is manufactured in different models, depending on the use and size of the excavator. It is supplied complete with hydraulic motor, levelling roller with adjustable height, direct transmission (up to MH7), belt transmission (MH11), anti-cavitation valve, priority shockproof valve, adjustable support slides and drilled flat plate. Drain is recommended for counter-pressures > 5 bar. Rotation speed 2200/2500 rpm.

Technical specifications

MODEL MH3 70 MH3 90 MH5 105 MH7 105 MH7 125 MH11 130 MH11 160
Width (A) 950 1150 1300 1250 1450 1450 1850
Depth (B) 550 550 600 750 750 900 1000
Height (C) 450 450 400 500 500 600 700
Working width [mm] 700 900 1050 1050 1250 1300 1600
Weight [kg] 130 150 190 220 250 345 420
Oil flow [L/min] 20/40 30/40 40/60 60/80 60/80 60/90 80/90
Pression [bar] 170/220 170/220 170/220 200/220 200/220 200/220 200/220
Excavator class [T] 1,5 - 5,0 2,0 - 5,0 4,0 - 6,0 6,0 - 8,0 6,0 - 8,0 6,0 - 12,0 10,0 - 12,0
Rotor standard MHF2 MHF2 MHF2 MHF3 MHF3 MHF6 MHF6
Rotor optional MHC1 / MKC1 MHC1 / MKC1 MHC1 / MKC1 MKF3 MKF3 MKF7 MKF7
Motor displacement [cc] 42682 08/11 16 22/27/34 22/27/34 34/44/51 44/51
Motor type gears gears gears cast iron gears* cast iron gears* cast iron gears* cast iron gears*
Hammers/knives number [n°] 12 16 16 16 20 20 20
* Upon request, a piston motor is available too
