Hydraulic Mulching Head for excavators & Mini Track Loaders/SSL

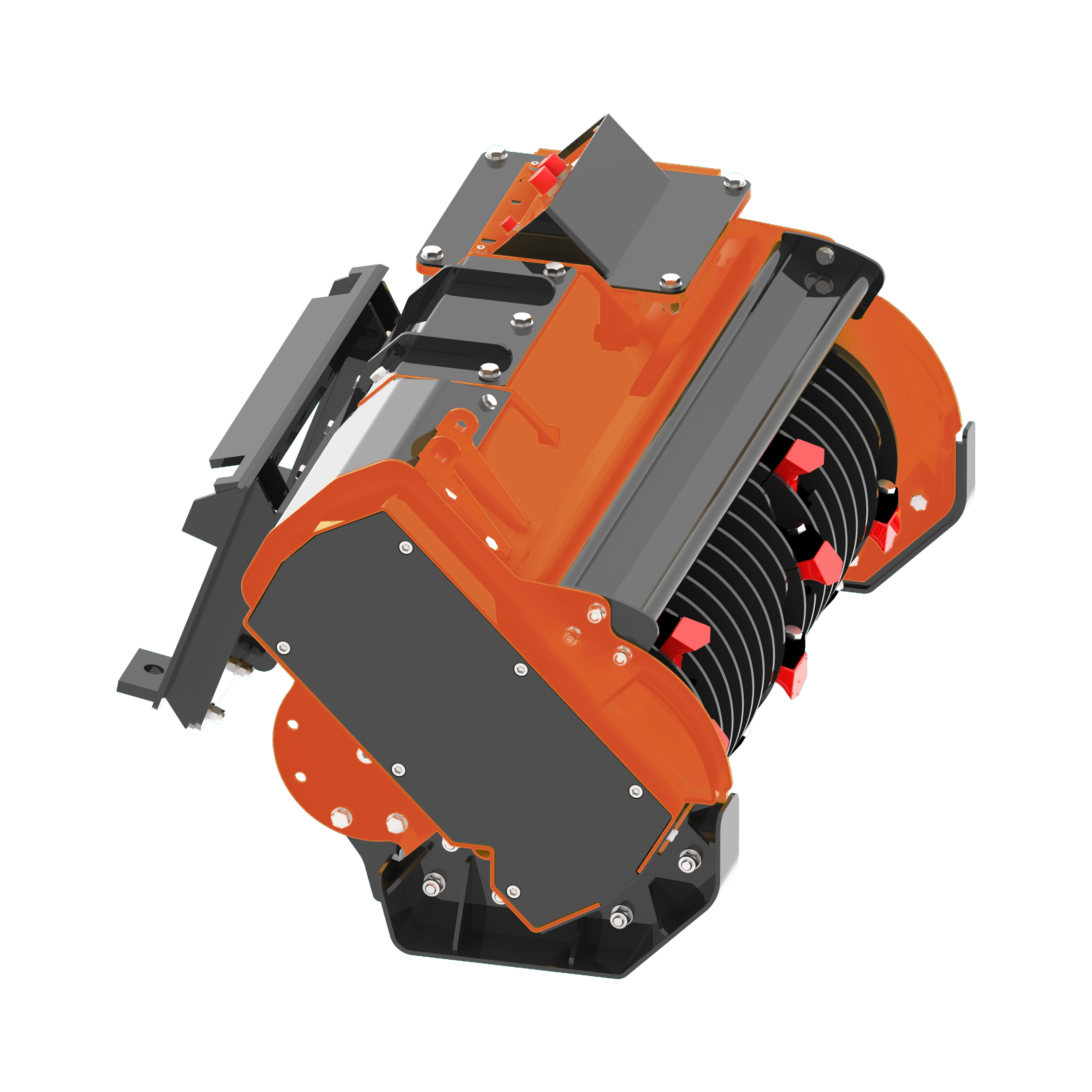

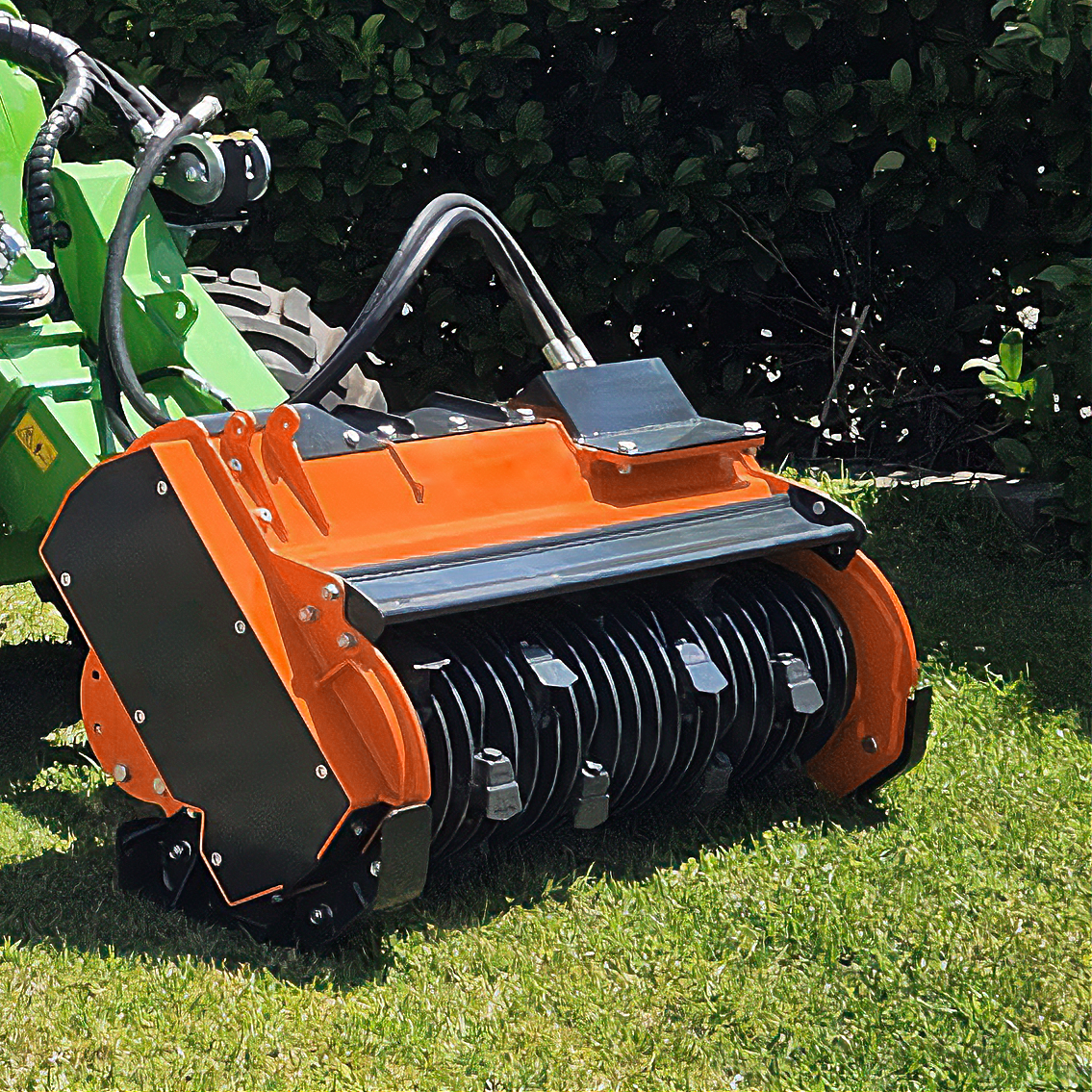

The M3 MH9MT series mulching head, built with a robust and reliable design, can be mounted on excavators, skid steer loaders, and mini track loaders. Thanks to a dedicated kit and by replacing only a few components, it can be used on different types of machines. It is supplied complete with a cast-iron gear motor, valve block including priority valve, shock and anti-cavitation valves, reinforced skid shoes, and mechanically adjustable front and rear hoods for increased cutting capacity. Available in the hammer version, HD3 version with fixed carbide teeth, and HD4 version with fixed teeth and bite limiter.
The third drain line is recommended for back pressures exceeding 5 bar. Rotor rotation speed 2200/2500 rpm.
Technical specifications
| MODEL | MH9 MT90 | MH9 MT110 | MH9 MT90 HD3 | MH9 MT110 HD3 | MH9 MT90 HD4 | MH9 MT110 HD4 |

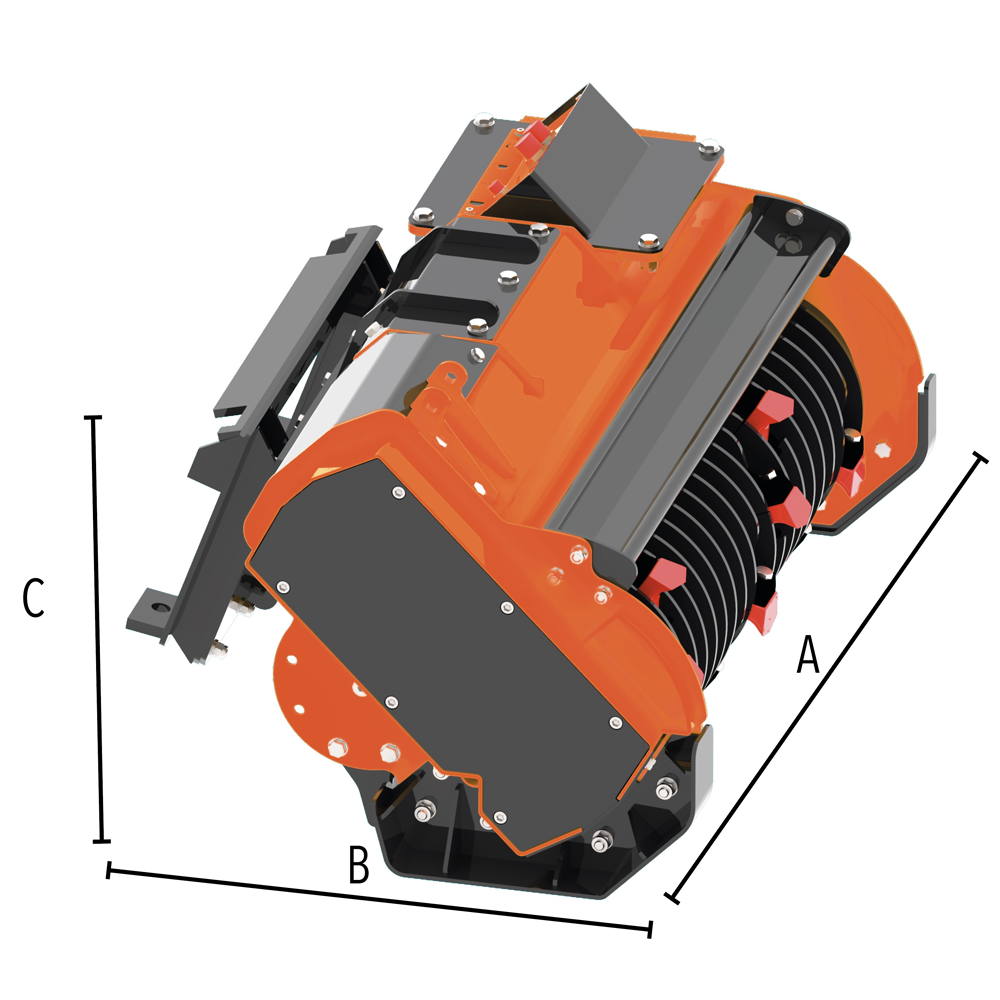

| Width (A) | 1050 | 1240 | 1050 | 1240 | 1050 | 1240 |
| Depth (B) | 670 | 670 | 670 | 670 | 670 | 670 |
| Height (C) | 640 | 640 | 640 | 640 | 640 | 640 |
| Working width [mm] | 900 | 1100 | 900 | 1100 | 900 | 1100 |
| Weight [kg] | 290 | 350 | 380 | 450 | 415 | 490 |
| Oil flow [L/min] | 40/50/60 | 50/60/80/100 | 50/60/80/100 | 50/60/80/100 | 50/60/80/100 | 50/60/80/100 |
| Pression [bar] | 170/220 | 200/220 | 200/220 | 200/220 | 200/220 | 200/220 |
| Excavator class [T] | 4,0 - 8,0 | 6,0 - 10,0 | 6,0 - 12,0 | 6,0 - 12,0 | 6,0 - 12,0 | 6,0 - 12,0 |
| Rotor standard | MHF3 | MHF3 | MHF14 | MHF14 | MHF22 | MHF22 |
| Rotor optional | MKF3 | MKF3 | MHF15 | MHF15 | ***** | ***** |
| Motor type | gears | gears | gears | cast iron gears* | cast iron gears* | pistoni |
| Teeth number [no.] | 14 | 16 | 24 | 30 | 18 | 22 |
| * highly recommended for excavators from 12 t upwards with piston motors | ||||||
