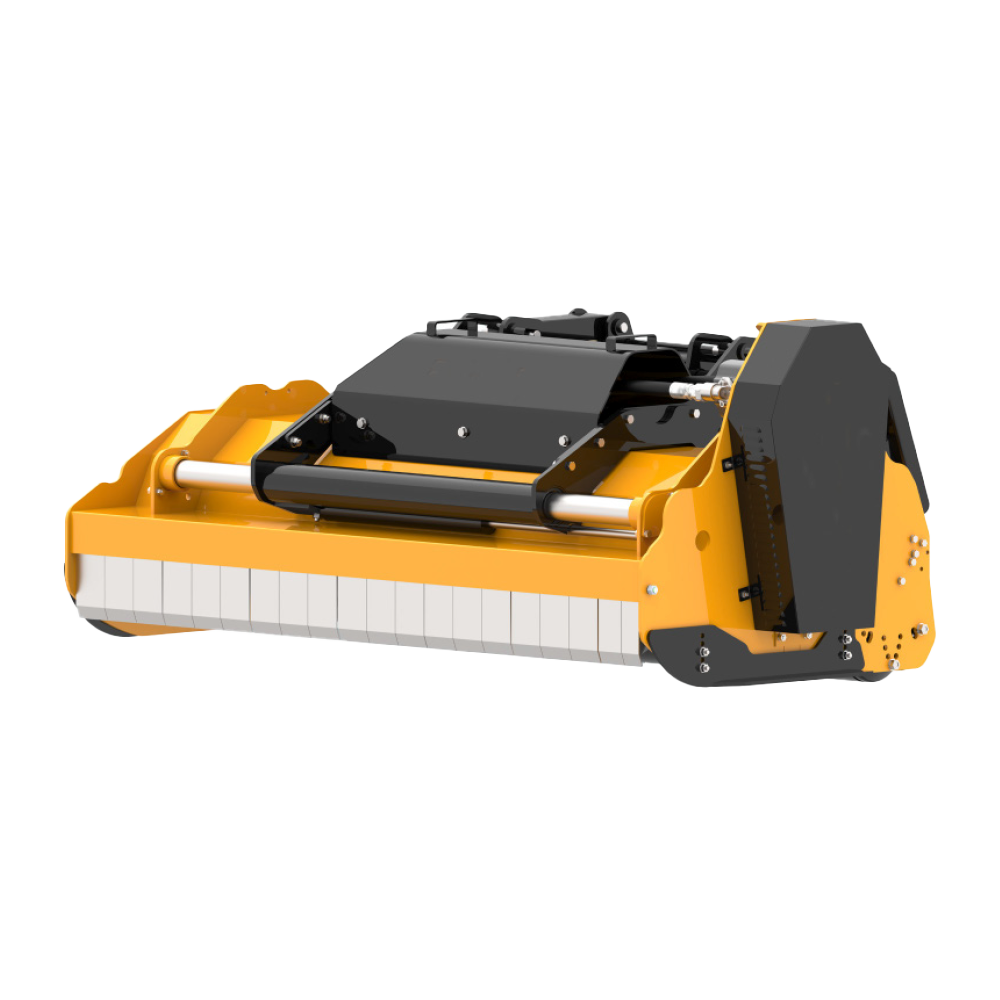

Hydraulic Bush Cutter MHC

The M3 MHC series bush cutter, featured by its solidity, is designed to fit skid loaders, wheel loaders and telehandlers up to 80/90 HP. Available in 2 versions, standard and HD. The standard version is equipped with universal oscillating and floating coupling, mechanical side movement, valve block, sturdy and reinforced structure, helical rotor with tempered hammers (standard) or knives (optional), hydraulic motor with V-belt transmission. The HD version is equipped with universal fixed coupling, rotor with fixed widia teeth, reinforced wear-resistant structure, pressure gauge for working pressure control, double rear chains for greater protection, piston motor and high performance HTD single belt transmission. Drain is recommended for counterpressures > 5 bar. Rotation speed 2200/2500 rpm.

Technical specifications

MODELMHC5 160MHC5 180MHC5 200MHC10 160 HDMHC10 180 HD
Width (A)18202020222020002200
Depth (B)12001200120010001000
Height (C)11001100110016001600
Working width [mm]16001800200016001800
Weight [kg]89093097012851420
Oil flow [L/min]60/12060/12060/120100/180100/180
Pression [bar]200/220200/220200/220200/350200/350
Skid loader class [hp]50/9050/9050/9070/12070/120
Rotor standardMHF16MHF16MHF16MHF14MHF14
Rotor optionalMKF3MKF3MKF3MHF15MHF15
Motor displacement [cc]27/5127/5127/5145/8045/80
Motor typecast iron gearscast iron gearscast iron gearspiston gearspiston gears
Knives [n°]1820224254
