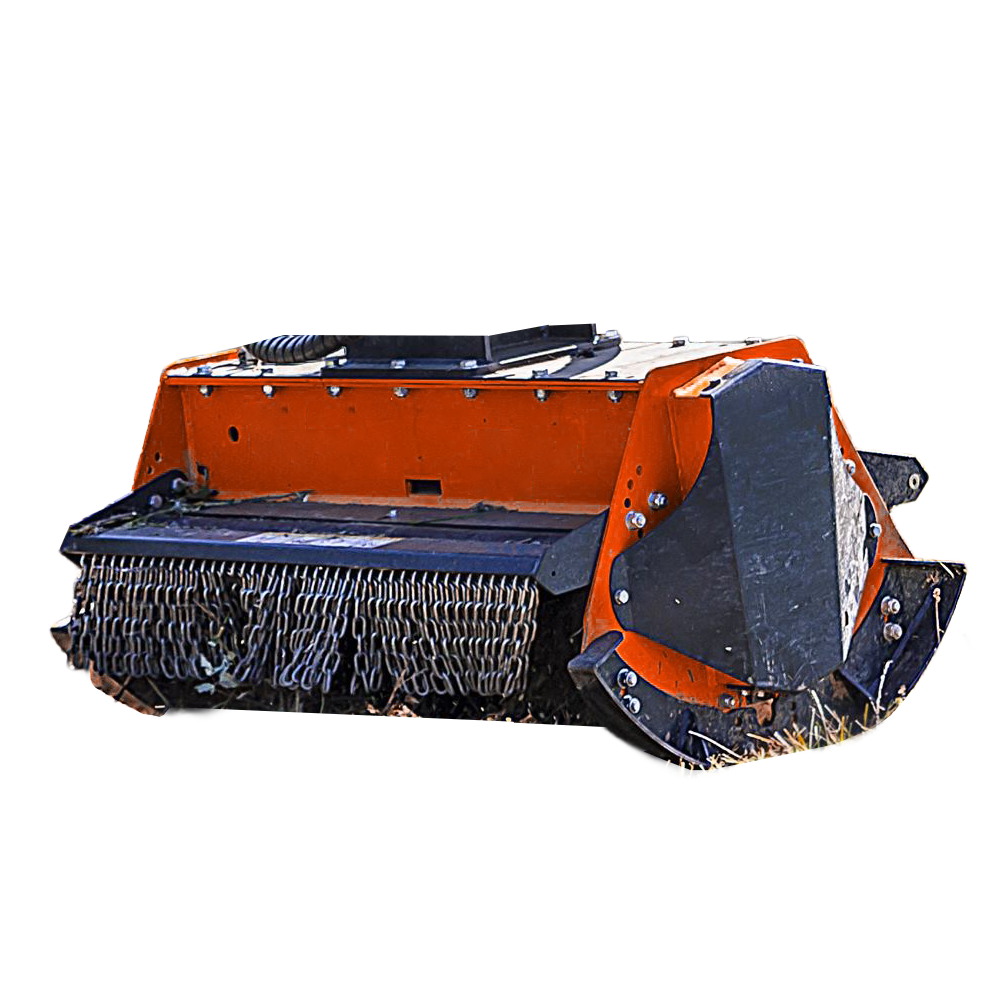

Hydraulic Mulching Head HD2
The Hydraulic Mulcher M3 is designed with a strong and reliable structure and can easily fit any type of excavators. It is manufactured in different models, depending on the use and size of the excavator. It is supplied complete with hydraulic motor (piston motor from the MH15 series), anti-cavitation valve, priority shockproof valve, adjustable support slides and drilled flat plate. Drain is recommended for counter-pressures > 5 bar. Rotation speed 2200/2500 rpm.
| MODEL | MH9 70HD2 | MH9 90HD2 | MH9 105HD2 | MH11 130HD2 | MH13 105HD2 | MH13 130HD2 | MH15 130HD2 | MH15 160HD2 |

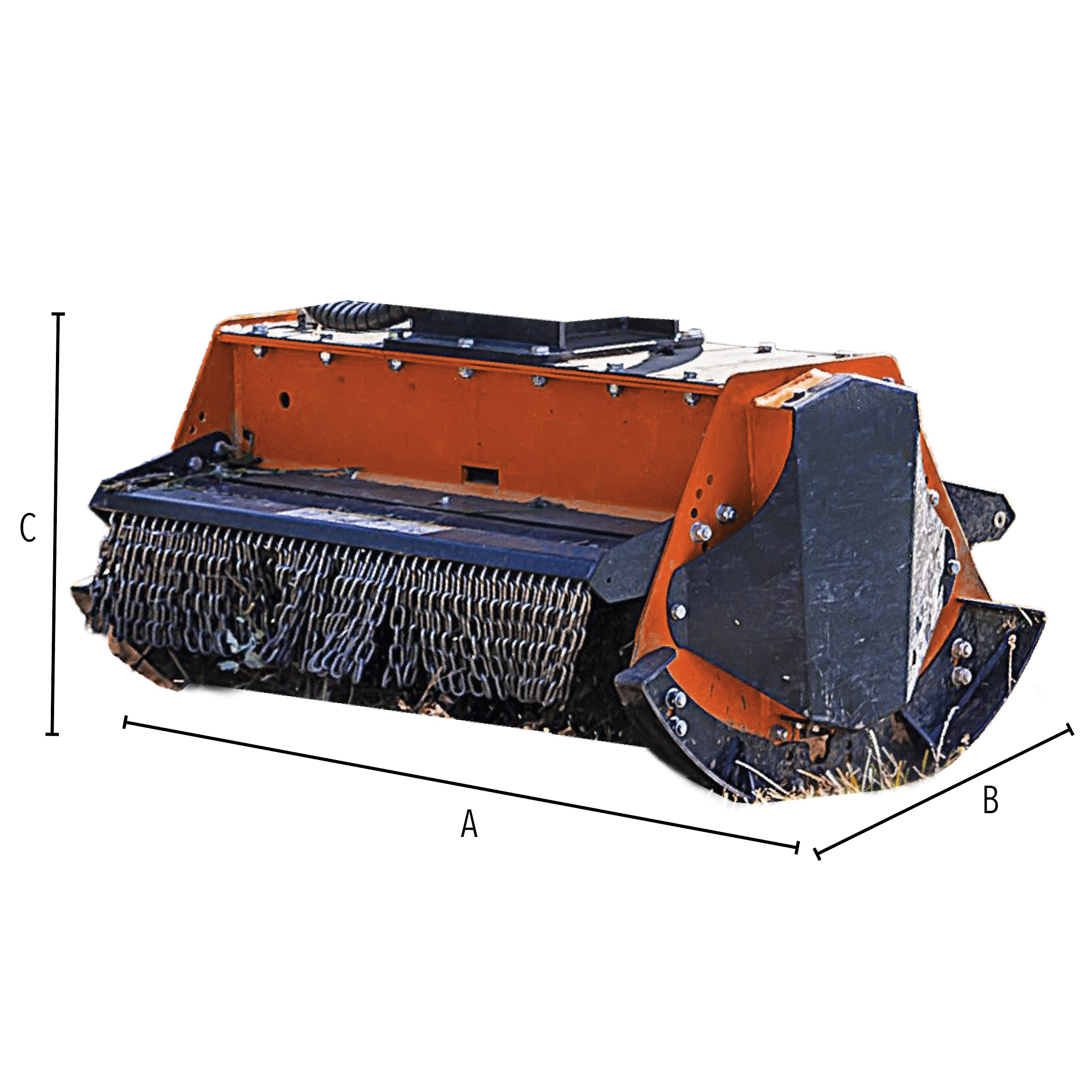

| Width (A) | 850 | 1050 | 1250 | 1450 | 1250 | 1450 | 1600 | 1900 |
| Depth (B) | 800 | 800 | 800 | 900 | 950 | 950 | 800 | 800 |
| Height (C) | 600 | 600 | 600 | 600 | 850 | 850 | 850 | 850 |
| Working width [mm] | 700 | 900 | 1050 | 1300 | 1050 | 1300 | 1300 | 1600 |
| Weight [kg] | 220 | 330 | 400 | 440 | 580 | 650 | 920 | 1020 |
| Oil flow [L/min] | 40/50/60/80/90 | 40/50/60/80/90 | 50/60/80/90 | 60/80/90 | 70/80/90 | 70/80/90 | 100/125/160 | 100/125/160 |
| Pression [bar] | 200/220 | 200/220 | 200/220 | 200/220 | 200/220 | 200/220 | 200/250 | 200/250 |
| Excavator class [T] | 5,0 - 8,0 | 6,0 - 8,0 | 6,0 - 12,0 | 8,0 - 12,0 | 10,0 - 16,0 | 10,0 - 16,0 | 12,0 - 25,0 | 15,0 - 25,0 |
| Rotor standard | MHF17 | MHF17 | MHF17 | MHF19 | MHF19 | MHF19 | MHF11 | MHF13 |
| Rotor optional | ***** | ***** | ***** | ***** | ***** | ***** | MHF10 | MHF12 |
| Motor displacement [cc] | 22/27/34/44/51 | 22/27/34/44/51 | 27/34/44/51 | 44/51 | 44/51 | 44/51 | 32/64 | 32/64 |
| Motor type | gears | gears | gears | cast iron gears* | cast iron gears* | cast iron gears* | cast iron gears* | piston gears |
| Hammer sets [n°] | 12 | 18 | 22 | 18 | 16 | 18 | 26 | 32 |
| * Upon request, a piston motor is available too | ||||||||
